Produktbeschreibung

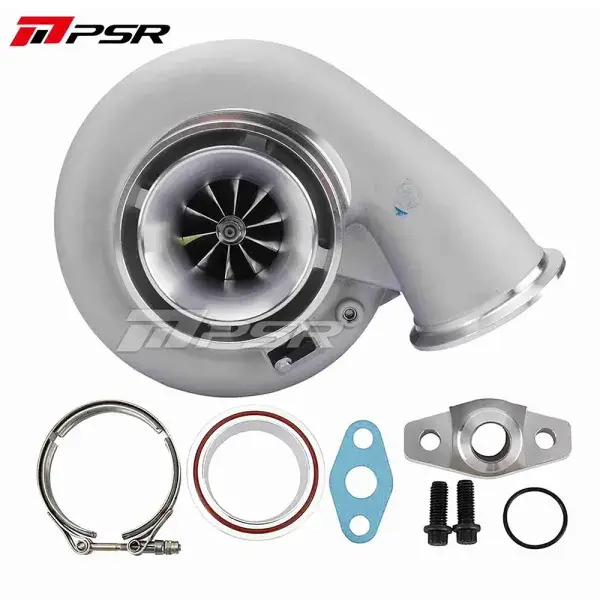

- PSR Class Legal Turbo with 62/98mm Compressor wheel
- Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
- 10 Blade G-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
- 7 Turbine housing in option
Additional information
- Compressor Wheel: 62x98mm
- Turbine Wheel: 82x75mm
- Compressor Inlet: 5 inch Hose
- Compressor Outlet: 3 inch V-Band
- Turbine Inlet: 3 inch V-Band
- Turbine Outlet: 3.5 inch V-Band
- Without Turbine Housing
- Water Ports: -6AN
- Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted)
- Oil Drain: Angle 15°, -12AN(O-Ring sealed Flange
