Produktbeschreibung

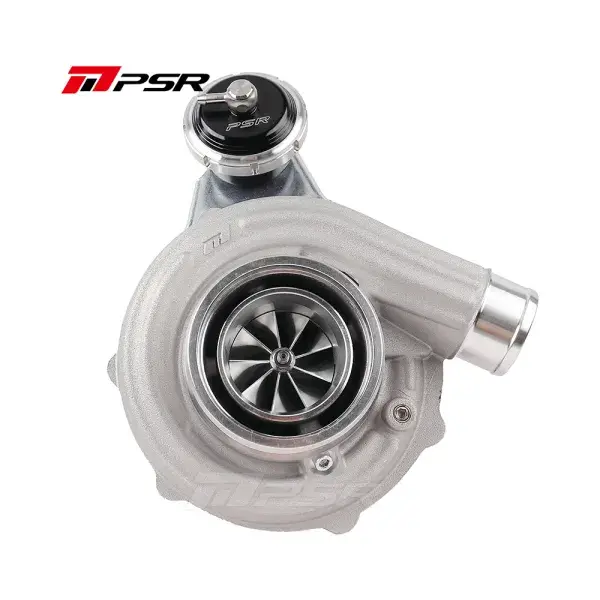

- PTA series Turbine wheel with slim nose and hub for reduced weight and faster spool-up
- Decentered blades on turbine wheel for improved gas flow ability and reduced turbo lag
- Newly designed Anti-Surge compressor housings with integrated speed sensor port and boost reference port for improved performance monitoring and control
- Dual ball bearing system for improved durability, stability, and reduced friction resulting in enhanced performance and longevity
- With Internal Wastegate
Additional Information
- PTG series Flank Milled Compressor Wheel: 58x71mm
- PTA series Turbine Wheel: 60x55mm
- Compressor Housing: Standard
- Compressor Inlet: 4inch Hose
- Compressor Outlet: 2inch Hose
- Turbine Inlet: T3
- Turbine Outlet: V-Band
- A/R: .72
- Water Ports: 2-M14 X 1.5
- Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
- Oil Outlet: Std T3 Oil Drain Flange
