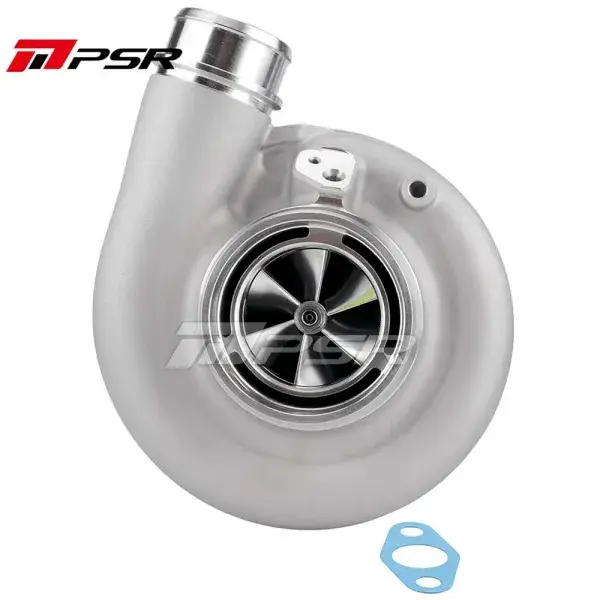

Pulsar Turbo Systems 369D 950HP GEN2 Dual Ceramic Ball Bearing Turbo – Standard – 76×67.5mm – Without Turbine Housing – 112130014 Zertifiziert

Beschreibung

Produktbeschreibung

• Dual Ceramic Ball Bearing Systems
• Billet Compressor Wheels with Extended Tapered Tip Technology
• Inconel 713c Turbine Wheel
• Gen2 compressor cover with ported-shroud inlet and integrated with the speed sensor port
• Max Flow Rate: 100+ lb/min, rated @ 950FWHP


• Compressor Wheel: D369 69×94 mm, 6+6
• Compressor Housing: Standard
• Turbine Wheel: 76×67.5mm
• Compressor Inlet: 4.0 inch Hose
• Compressor Outlet: 2.5 inch Hose
• Oil Feed: 1/4 NPT
• Oil Drain: Std T4 Flange
