Beschreibung
Produktbeschreibung

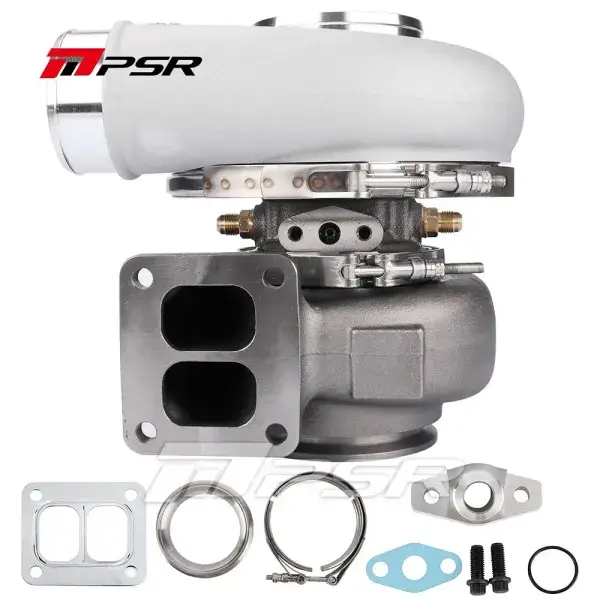

- CNC Machined Aluminum Bearing Housing with The FIN COOLING DESIGN
- G series design 9 Blade Inconel 713 turbine wheel for improved gas flow ability and reduced turbo lag
- Dual Ceramic Ball Bearing Systems
- Billet Compressor Wheels with Extended Tip Technology
- -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box
Additional information
- Compressor Wheel: 80x113mm 7+7 blade
- Compressor inlet: 5 inch Slip-Fit
- Compressor Outlet: V-band
- Turbine Wheel: 96x88mm 9 Blade
- Turbine Housing: Standard
- A/R: 1.58
- Turbine Housing Inlet: T6 Divided
- Turbine Housing Outlet: 3/4 Marmon V-band
- Oil Feed Port 1/4NPT
- Oil Drain Std T6 drain Flange
